Scan Tissue for Local Immune Cell Clustering (Ripley's L Heatmap)

scan_clustering.Rd

Applies a sliding-window Ripley's L analysis across the tissue to produce a spatial clustering map. For each window a K-integral index is computed as the mean positive excess of the observed L function over its theoretical CSR value. When plot = TRUE a base-graphics spatial map is drawn with LOESS-smoothed L-excess curves and numeric CI labels overlaid inside each qualifying window, plus a legend identifying point and curve colours.

Usage

scan_clustering(
  ws = 500,
  sample,
  phenotype = c("T cells", "B cells", "Both"),
  plot = TRUE,
  creep = 1L,
  min_cells = 10L,
  min_phen_cells = 5L,
  label_cex = 1.1,
  ldata = NULL
)

Arguments

ws

Numeric. Window side length in microns (default 500).

sample

Character. Sample name in ldata.

phenotype

One of "T cells", "B cells", or "Both".

plot

Logical. Draw the spatial clustering map? (default TRUE).

creep

Integer. Grid density factor; creep = 2 overlaps adjacent windows by half a window width, producing a smoother map (default 1).

min_cells

Integer. Minimum total cell count required in a window before it is analysed (default 10).

min_phen_cells

Integer. Minimum phenotype-specific cell count per window (default 5).

label_cex

Numeric. Base character expansion for the CI numeric labels drawn inside each window (default 1.1). Increase this value if labels appear too small for your screen or output resolution.

ldata

Named list of data frames, or NULL to use the global ldata object (deprecated; pass explicitly).

Value

A named list with elements B and/or T (depending on phenotype), each containing the Lest objects for all qualifying windows of that phenotype. Returned invisibly when plot = TRUE.

Details

The K-integral clustering index for window \(w\) is: $$\text{CI}_w = \frac{1}{N_+}\sum_{i:\,L_i > L_{\text{theo},i}} (L_i - L_{\text{theo},i})$$ where \(N_+\) is the number of spatial lags where the observed L exceeds the theoretical CSR value.

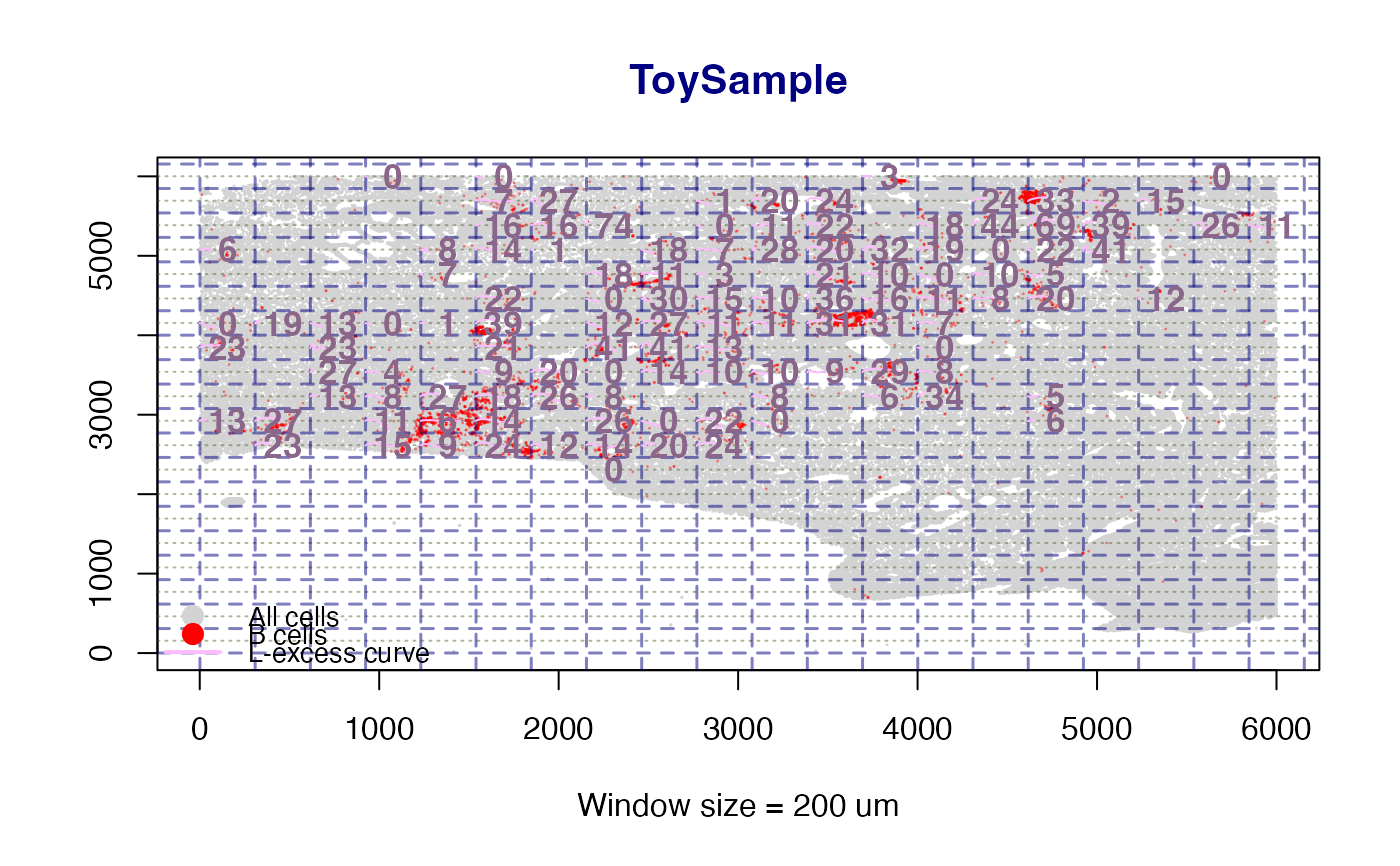

When plot = TRUE the map shows:

  • All cells as small light-grey points.

  • Phenotype cells (T cells green, B cells red).

  • Navy dashed grid lines marking window boundaries.

  • A LOESS-smoothed L-excess curve inside each qualifying window.

  • A bold numeric CI label centred in the window.

  • A legend identifying all point and curve colours.

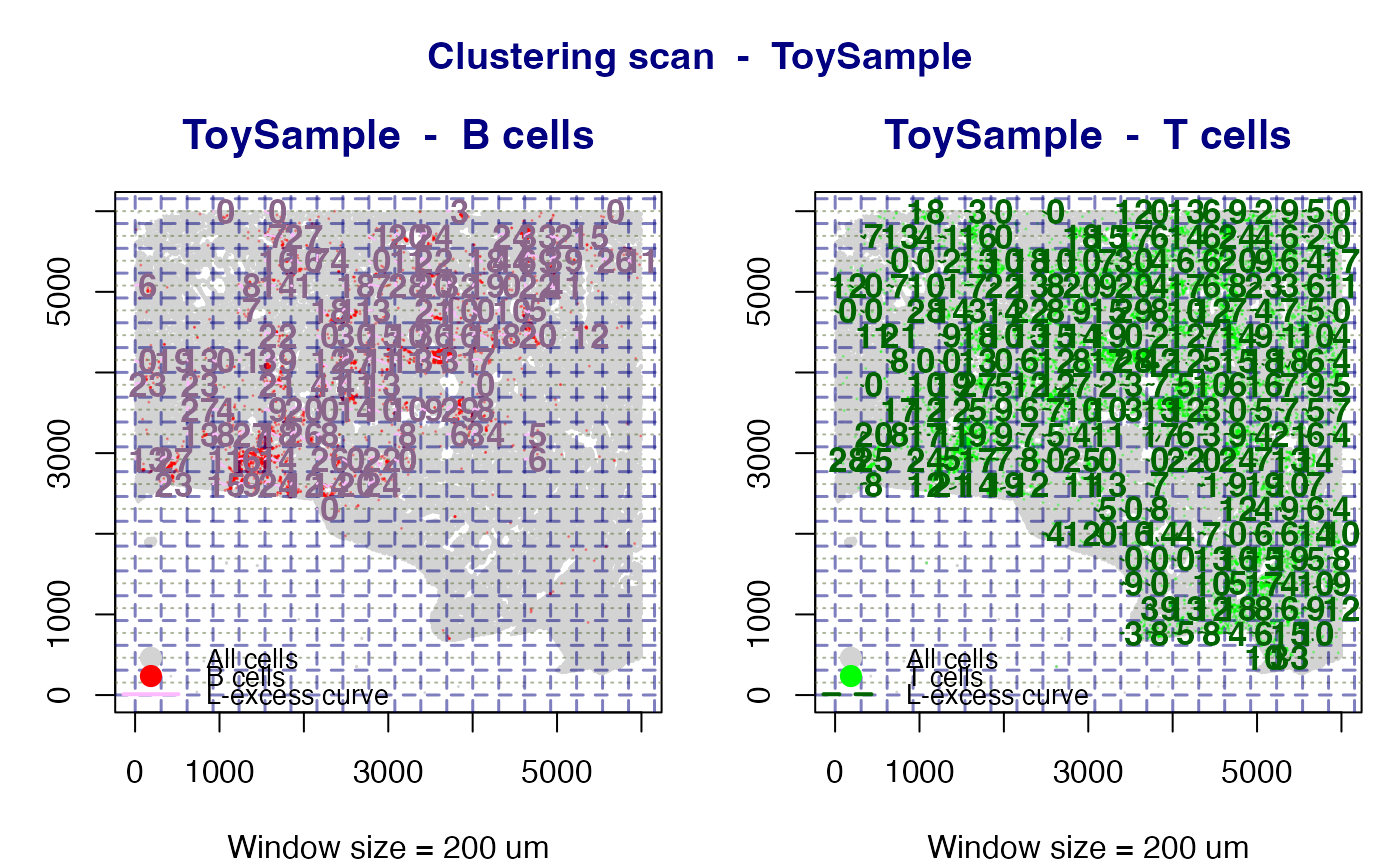

When phenotype = "Both" two side-by-side panels are produced - one for B cells and one for T cells - so the two clustering maps can be compared directly on the same spatial layout.

Examples

data(toy_ldata)
# \donttest{
  L_models <- scan_clustering(
    ws        = 200,
    sample    = "ToySample",
    phenotype = "B cells",
    plot      = TRUE,
    ldata     = toy_ldata
  )
#> Warning: span too small.   fewer data values than degrees of freedom.
#> Warning: pseudoinverse used at 0.95
#> Warning: neighborhood radius 2.05
#> Warning: reciprocal condition number  0
#> Warning: There are other near singularities as well. 4.2025
#> Warning: span too small.   fewer data values than degrees of freedom.
#> Warning: pseudoinverse used at 0.95
#> Warning: neighborhood radius 2.05
#> Warning: reciprocal condition number  0
#> Warning: There are other near singularities as well. 4.2025

#> scan_clustering [B cells]: 118 window(s) analysed in 'ToySample'.
  cat("B-cell windows analysed:", length(L_models$B), "\n")
#> B-cell windows analysed: 118

  # Side-by-side B and T cell panels
  L_both <- scan_clustering(
    ws        = 200,
    sample    = "ToySample",
    phenotype = "Both",
    plot      = TRUE,
    ldata     = toy_ldata
  )
#> Warning: span too small.   fewer data values than degrees of freedom.
#> Warning: pseudoinverse used at 0.95
#> Warning: neighborhood radius 2.05
#> Warning: reciprocal condition number  0
#> Warning: There are other near singularities as well. 4.2025
#> Warning: span too small.   fewer data values than degrees of freedom.
#> Warning: pseudoinverse used at 0.95
#> Warning: neighborhood radius 2.05
#> Warning: reciprocal condition number  0
#> Warning: There are other near singularities as well. 4.2025
#> scan_clustering [B cells]: 118 window(s) analysed in 'ToySample'.
#> scan_clustering [T cells]: 263 window(s) analysed in 'ToySample'.

# }
